T- Turbocharger / T- TCR12 Turbine Housing For Marine Propulsion And Gensets Engines

T- / T- TCR series turbocharger features:

T- TCR12 Turbine housing of Turbocharger Casing is one part of T- / T- TCR series turbocharger. T- / T- TCR series turbochargers were created to address the very special challenges faced by Heavy Fuel Oil, Marine Diesel Oil, biofuel and gas engines. Products are available for the entire engine power range, from 350 kW to 7MW per turbocharger. T- / T- TCR turbochargers are IMO Tier III compliant, and represent a robust, versatile modular platform– suitable for a wide variety of high-, medium- and low-speed engine applications.

• Increase of the compressor pressure ratio
• High efficiency
• Low noise emissions
• Simple installation to the engine
• Easy maintenance
• Long service life
• wide application: Marine propulsion, excavators, locomotives, power generation, off-road vehicles, machanical drive, mining, marine gensets.

Applications

Marine propulsion, excavators, locomotives, power generation, off-road vehicles, machanical drive, mining, marine gensets.

T- TCR series Marine turbocharger dimension and weight only for reference:

Brief introduction of turbocharger casing and turbine housing:

The turbocharger casings includes turbine part, bearing part and compressor part, so the turbine housing, bearing casing and compressor housings cover and protect all the important parts safely in the turbocharger to ensure a premium perforce of the engine.

A turbine housing (casing) includes a central aperture for containing a turbine blade assembly and directing exhaust gases past the turbine blades in a turbocharger. The turbocharger consists of a single stage impulse turbine connected to a centrifugal impeller via a shaft. The turbine is driven by the engine exhaust gas, which enters via the gas inlet casing. The gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

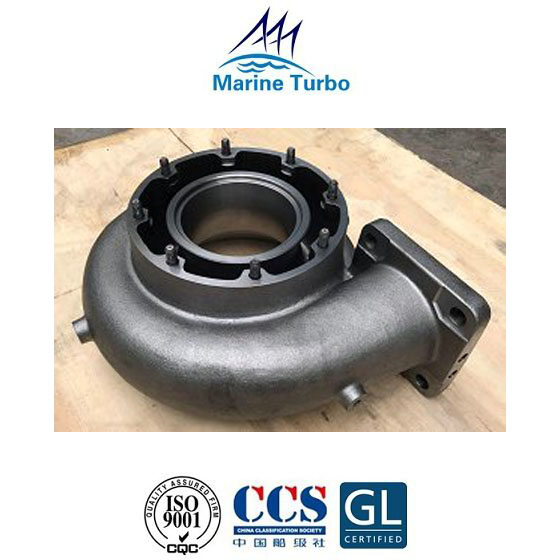

T- TCR12 turbine housing pictures:

Marine Turbo factory, founded in 1999, is a professional ufacturer for marine turbocharger replacement spare parts and components.

The Marine Turbo workshop, occupying more than 18,000 square meters, is located in Yangtze river delta region which is close to the international metropolis, Shanghai China. The company owns more than 100 units of ufacturing equipment and testing instruments, such as CAD, precision casting production line, four axis and five axis machining center, three coordinate measuring instrument, CNC lathe milling machine, metal cutting equipment with nondestructive flaw detection, etc.

With the advanced mechanical processing technology, Marine Turbo is fully in accordance with the strictly production process control method of military products to age the production line in the workshop in order to ufacture the high quality of turbocharger replacement parts. In the mean time, Marine Turbo factory introduce and absorb the latest technology at home and abroad that the factory independently develops the various types of turbocharger components and which are applied for engineering machinery and marine auxiliary machinery, such as the turbine blades, turbine shaft, compressor impeller, diffuser, oil pump, nozzle, etc.

The Company has also supplied nearly hundred kinds of engine parts for US client's yatchs production, and several creative technologies have been recorded in our domestic marine ufacturing industry.

In order to provide the reliable products, the company has passed the ISO9000 Quality agement System certificate in 2001, and also some of the products are certificated by CCS (China Classification Society Certification) and RINA Certificate.

Satisfying customers with supreme quality and reliable services for marine turbocharger replacement parts is the aim across the whole Marine Turbo company.

Marine Turbo Keep a Large Inventory for Quick Delivery

Marine Turbo has more than hundres of types of replacement parts for customers to choose quickly. Among them, 90% of the product models Marine Turbo has the inventory, can meet the turbocharger overhauling, maintenance and repair needs for various brands with a quick response and reasonable price.

According to the feedback and sales situation of customers seasonally and yearly, our company analyzes and make the turbocharger replacement parts’ production plan, in order that our company can keep the inventory for common spare parts all the time, while as for some non-common parts, we will keep the long-term inventory of semi-finished products.

The purpose to build our large inventory is to save time for customers’ waiting for repairing spare parts as much as possible, so that to help customers resume operations as soon as possible, and ultimately improve the effectiveness of competition.

We recommend that customers can make the plans to establish a small stock for your own to minimize the time lost as much as possible.

Marine Turbo look for the professional local distributor for turbocharger replacement parts around each country of the world.

Marine Turbo products has sold to all over the world. From the feedback from various places, we have been highly recognized for the quality of our products and delivery time. However, in order to better serve the local market, we are looking for professional turbochargers aftermarket parts distributors in different countries of the world, so as to establish a local inventory chain through cooperation and assessment for a certain period of time.
The aim to build local chain is to enable end users to shorten the waiting time for the turbocharger spare parts as much as possible, then to save costs and improve the market competition effectiveness for end users.
