    Turbocharger Assembly For Radial Mitsubishi Marine Engine Parts MET18SRC

    Ask Lasest Price
    Brand Name : Marine Turbo
    Model Number : MET18SRC
    Certification : ISO
    Payment Terms : T/T
    Supply Ability : 50 pcs / month
    Delivery Time : 3-4 working days
    • Product Details
    • Company Profile

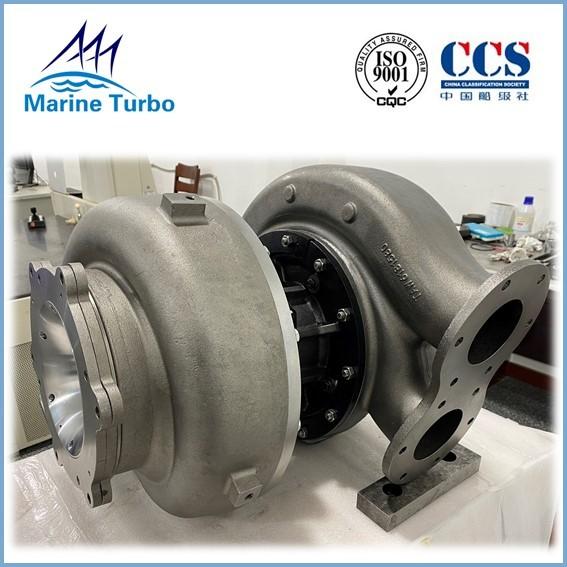

    Turbocharger Assembly For Radial Mitsubishi Marine Engine Parts MET18SRC

    MET18SRC Complete Turbocharger Assembly For Radial Mitsubishi Marine Engine Parts


    Mitsubish / MET-SRC series exhaust gas turbocharger's design features:

    • The MET-SRC series turbochargers is designed to meet the market requirement of higher perforce and reilability on the basis of former axial type of MET series turbochargers.
    • METAxial TypeRadial Type
      Original and ..0 SeriesS, SA SeriesSB,SBII SeriesSR, SRII Series
      SC,SD SeriesSE SeriesSEII SeriesSRC Series
      MA SeriesMB SeriesMBII SeriesER Series
    • Higher compressor pressure ratio up to 5.5;
    • The MET-SRC series is radial type of turbocharger;
    • Engine output range from 400kW to 4,400kW per turbocharger based on pressure ratio 3.5;
    • Non-water cooling and no air vent;
    • Easy overhaul and crew-maintainable design;
    • Suitable for diesel and heavy fuel oil engines.

    Mitsubish / MET-SRC Series turbocharger's types, engine output, pressure ratio and dimension:

    T- METT- SRC SeriesEngine Output (kW)*Max. Pressure RatioL (mm)W (mm)H (mm)
    T- MET18SRC400-1,1005.5712510510
    T- MET22SRC650-1,6005.5835605605
    T- MET26SRC850-2,2005.51,075735735
    T- MET30SRC1,150-3,3005.51,368860860
    T- MET37SRC2,200-4,4005.51,6611,0701,070

    Note: *Engine Output Range is for reference subject to pressure ratio 3.5.

    More pictures for MET18SRC Complete Turbocharger Assembly:


    Photo for MET18SRC Turbine casing:

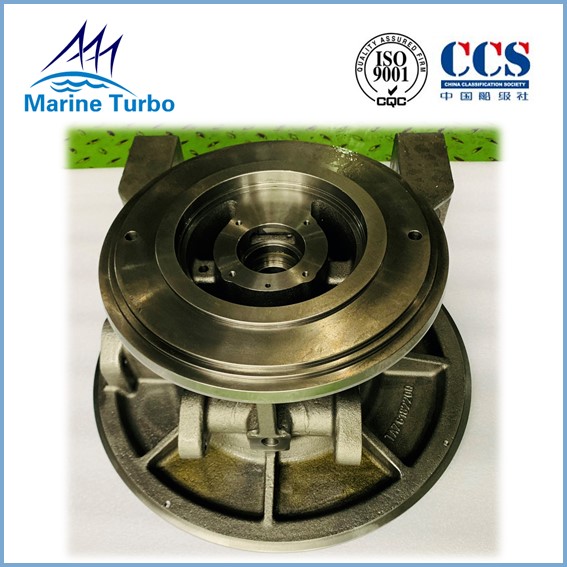

    Photo for MET18 SRC Bearing casing with foot:


    Photo for MET18 SRC Bearing casing without foot:


    Photo for MET18SRC compressor casing:

    Q&A:

    Q1. what are your main products?
    A: our main products are turbocharger complete, compressor wheel / impeller, turbine shaft, cartridge, rotor complete, bearing assembly, nozzle ring, diffuser, cover ring, oil pump, sealing bush, compressor housing, bearing housing, turbine casing, silencer, service kits, tools, etc....


    Q2. What is the Warranty?

    A: 12 months for fixed parts and 6 months for rotary parts.


    Q3. what is your terms of delivery?

    A: EXW, FOB, CIF


    Q4. what is your terms of payment?
    A: 100% paid before delivery.


    Q5. how about your delivery time?
    A: most models are in stock. Generally, we can ship it as soon as receiving your payment. the specific delivery time depends on the items and the quantity of your order.


    Q6. Can you supply other type of parts for MET series?

    A: Yes, we can, such as MET18SRC, MET26SR, MET30SR, MET33SC, MET42SC, MET53SC, MET83SC, MET42SD, etc..
